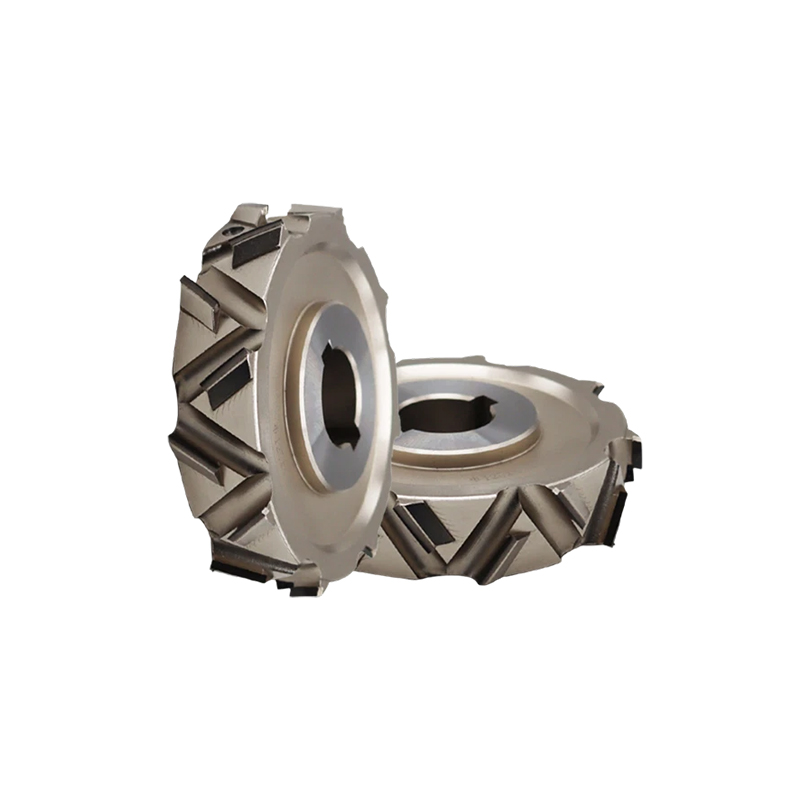

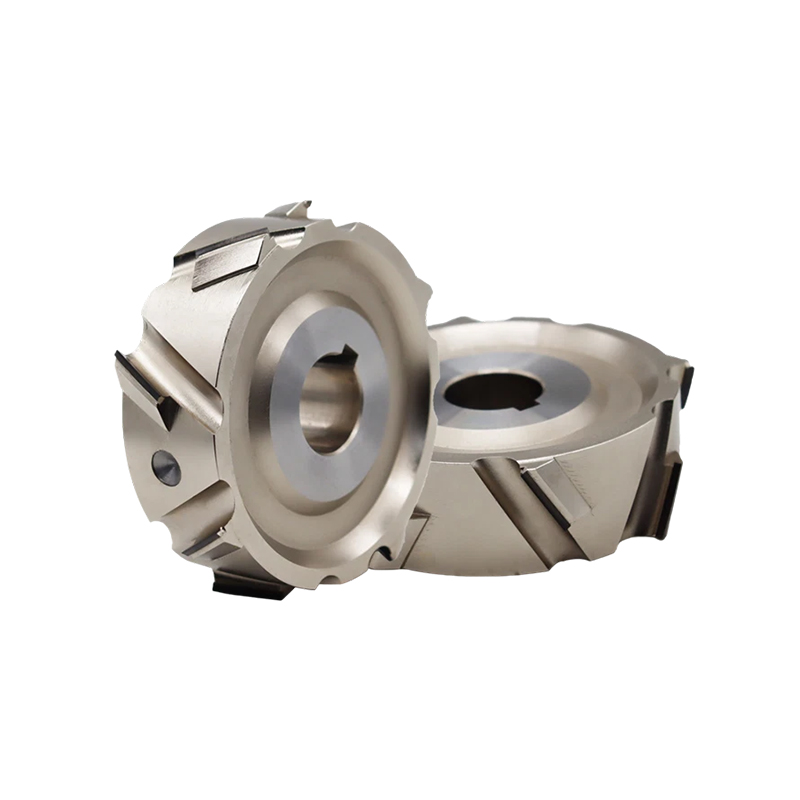

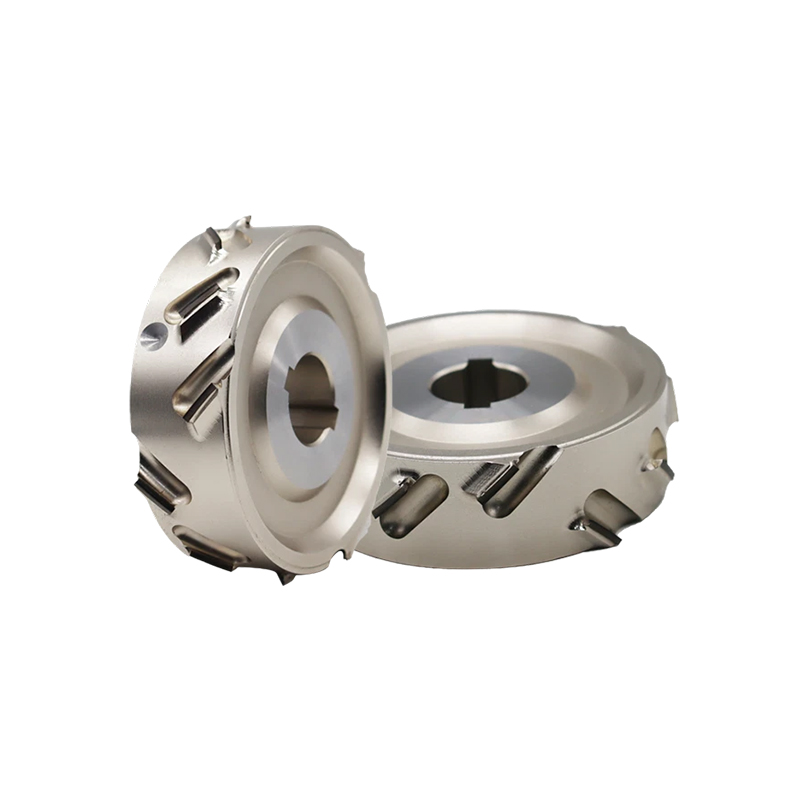

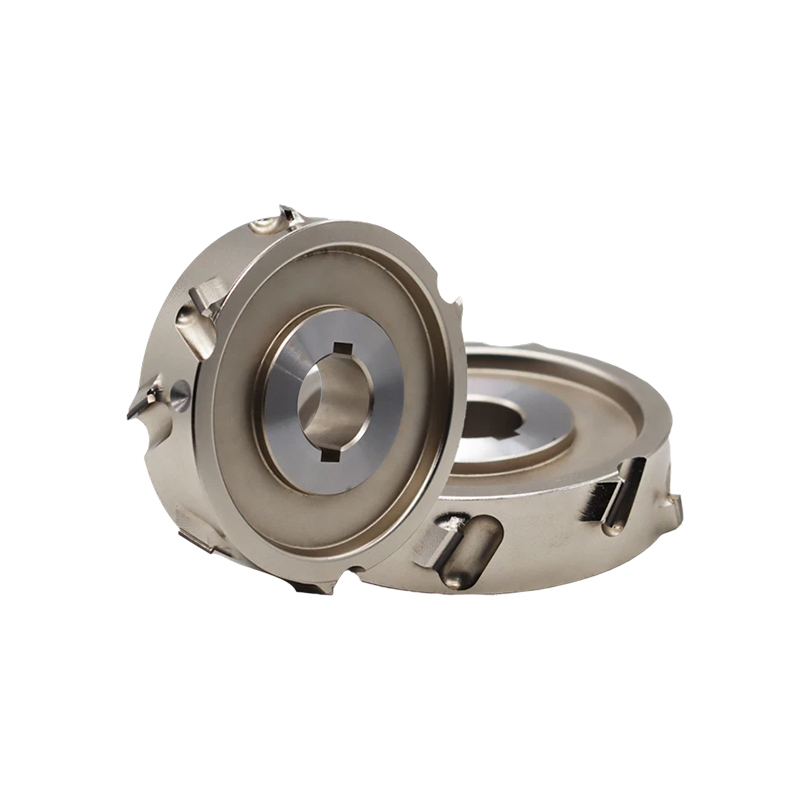

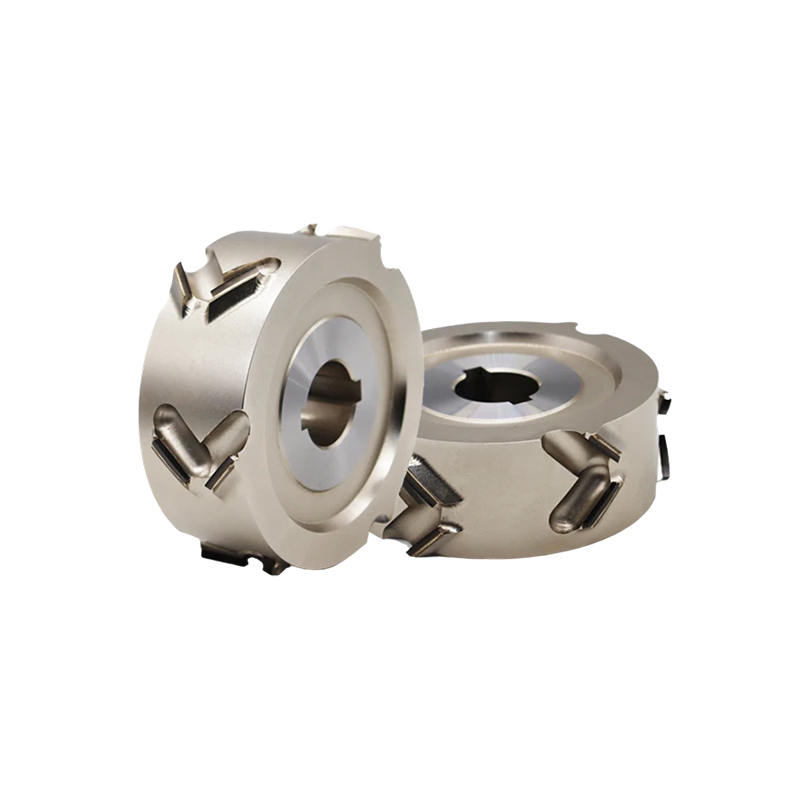

Diamond Pre-Milling Cutter

JD202501
Customized with drawings and samples, order quantity
The first process of edge banding is pre-milling. Good edge banding quality must have the process of pre-milling. Pre-milling is to pass the board through two pre-milling cutters with different rotation directions (front pre-milling is reverse rotation, rear pre-milling is forward rotation), and cut off the excess edges (about 20 wires). Pre-milling can remove the slight unevenness and cracks on the cutting surface of the board, so that the edge banding strip and the board are more firmly bonded, and can effectively avoid the phenomenon of pinholes and pores after edge banding. Commonly used pre-milling cutters now include welded diamond pre-milling cutters, discarded diamond pre-milling cutters, and discarded alloy pre-milling cutters.
High gloss board pre-milling cutter:
For melamine veneer, paper veneer, fireproof board, thin aluminum veneer, wood veneer veneer trimming and cutting, the noise is extremely low, and the processed material can obtain a better surface finish.
Ultra-light throwaway milling cutter:
Applicable to: Workpiece materials: Granular and fiber materials (MDF, etc.) without coating, veneer, plastic and paper coating, fiber reinforced plastic (glass fiber reinforced plastic, carbon fiber reinforced plastic, etc.)

Consultation

Features Technical Indicators Overall Dimension

Advantages: The use of sawn tool bodies can significantly reduce weight. The tool body can be used multiple times with replaceable tools. Low noise, ultra-light tool body reduces the burden on the spindle and is more conducive to protecting the spindle. The throwaway pre-iron cutter can obtain different shear angles according to needs.

Serial number	Name	Specification	Serial number	Name	Specification
Serial number	Name	Specification	Serial number	Name	Specification
1	Diamond pre-milling cutter	12530H43*12Z	31	Diamond pre-milling cutter	12530H55*18Z-45°
2	Diamond pre-milling cutter	12530H43*12Z	32	Diamond pre-milling cutter	10030H48*3+3Z-15T
3	Diamond pre-milling cutter	12530H43*12Z	33	Diamond pre-milling cutter	10030H48*3+3Z-21T
4	Diamond pre-milling cutter	12530H43*12Z	34	Diamond pre-milling cutter	10030H35*3+3Z-6T
5	Diamond pre-milling cutter	12530H40*（3+3）Z-18T-45°	35	Diamond pre-milling cutter	10030H35*3+3Z-12T
6	Diamond pre-milling cutter	12530H43*（3+3）Z-12T	36	Diamond pre-milling cutter	10030H65*36Z
7	Diamond pre-milling cutter	12530H40*（3+3）Z-97	37	Diamond pre-milling cutter	10030H35*15Z-55°
8	Diamond pre-milling cutter	12530H35*（3+3）Z-6T	38	Diamond pre-milling cutter	10030H65*20Z
9	Diamond pre-milling cutter	12530H43*12Z	39	Diamond pre-milling cutter	10030H48*15Z
10	Diamond pre-milling cutter	12530H43*12Z	40	Diamond pre-milling cutter	8020H40*9Z
11	Diamond pre-milling cutter	12530H43*16Z-45°	41	Diamond pre-milling cutter	8020H35*12Z
12	Diamond pre-milling cutter	12530H43*16Z-45°	42	Diamond pre-milling cutter	8020H35*6Z
13	Diamond pre-milling cutter	12530H35*9Z	43	Diamond pre-milling cutter	15030H35*12Z
14	Diamond pre-milling cutter	12530H35*12Z-55°	44	Diamond pre-milling cutter	15030H65*20Z
15	Diamond pre-milling cutter	12530H3510Z(5+5)	45	Diamond pre-milling cutter	15030H35*12Z
16	Diamond pre-milling cutter	12530H35*(3+3)Z-8T	46	Diamond pre-milling cutter	15030H65*30Z
17	Diamond pre-milling cutter	12530H40*12Z-45°	47	Diamond pre-milling cutter	15030H35*8Z
18	Diamond pre-milling cutter	12530H35*12Z-55°	48	Diamond pre-milling cutter	15030H43*12Z
19	Diamond pre-milling cutter	12530H35*16Z-45°	49	Diamond pre-milling cutter	15030H55*16Z
20	Diamond pre-milling cutter	12530H35*18Z-55°	50	Diamond pre-milling cutter	12530H65*18Z
21	Diamond pre-milling cutter	12530H35*12Z-55°	51	Diamond pre-milling cutter	12530H65*18Z-45°
22	Diamond pre-milling cutter	12530H45*12Z	52	Diamond pre-milling cutter	12530H65*24Z
23	Diamond pre-milling cutter	12530H55*(3+3)Z-15T	53	Diamond pre-milling cutter	12530H65*15Z
24	Diamond pre-milling cutter	12530H25*(8+8)Z-16T	54	Diamond pre-milling cutter	12530H43*16Z
25	Diamond pre-milling cutter	12530H25*9Z	55	Diamond pre-milling cutter	12530H43*15Z-55°
26	Diamond pre-milling cutter	12530H30*6Z	56	Diamond pre-milling cutter	12530H43*18Z
27	Diamond pre-milling cutter	12530H35*20Z-45°	57	Diamond pre-milling cutter	12530H43*12Z
28	Diamond pre-milling cutter	12530H55*(3+3)Z-12T	58	Diamond pre-milling cutter	12530H43*12Z
29	Diamond pre-milling cutter	12530H35*(4+4)Z-24T	59	Diamond pre-milling cutter	12530H43*30Z-55°
30	Diamond pre-milling cutter	12530H65*(3+3)Z-18T	60	Diamond pre-milling cutter	12530H43*16Z-45°
